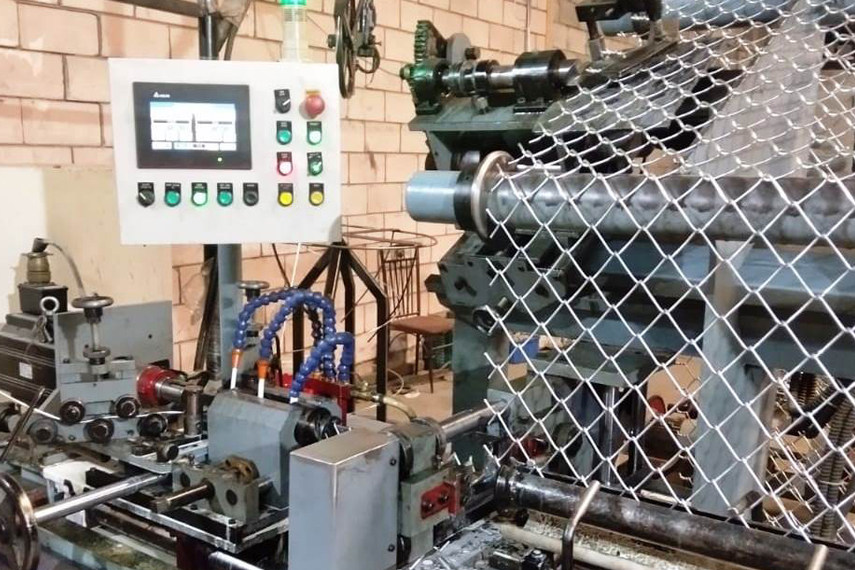

Double Wire High Speed Fully Automatic Chain Link Fence Machine
Gatex International chain link weaving machine incorporates a redesigned mechanical platform with updated automation and electrical technology.
The new machine offers compact floor space, minimized mesh weave downtime, reduced wear items, while maintaining production. The operator control system on our chain link fence machine allows the operator to program all product criteria configurations, thus making this the most versatile chain link fully automatic and semi-automatic available on the world market.
Technical SpecificationFor High Speed Fully Automatic Double Wire Fence Machine
- Wire mesh Width ½ Meter to 4 meter ( 500mm to 4000mm )
- Operation of Wire mesh 20x20mm to – 70x70mm
- Mesh Size – Standard 25 x 25mm to 90 x 90mm ( 1 x 1 inch – 3.5. X 3.5 inch )

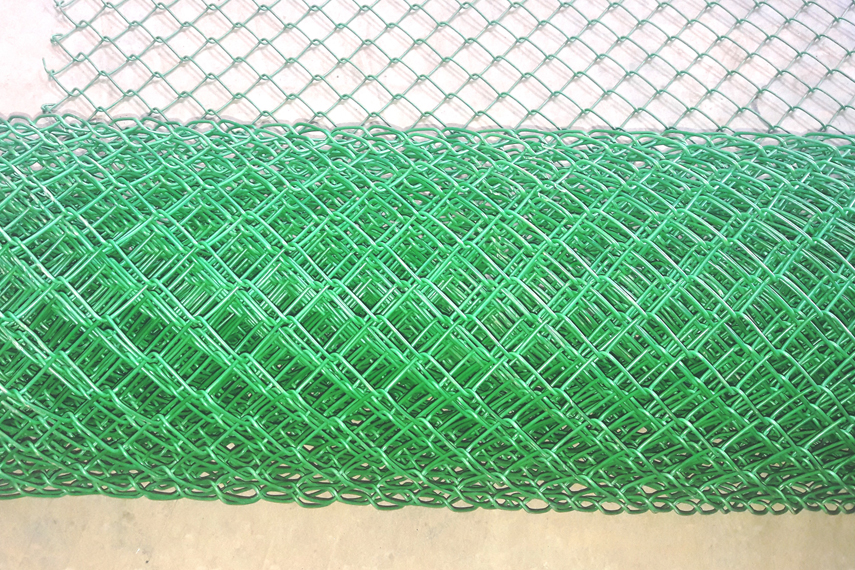

- PVC Coated wire diameter 1.6 to 4mm ( 16 – 8 Gauge( as per client need we can change )
- Fence Length Up to 25 meter
- Knuckling and Twisting bending optional
- Updated Automation Technology – Servo & Motion system Panasonic – Japan
- Electrical Control Panel is high quality with IP54 Certification and One year warranty
- PLC ( Programmable Logic Controller ) HMI – Display Touch Screen
- All machine parameters can be change by client as per machine need by HMI – Touch Screen

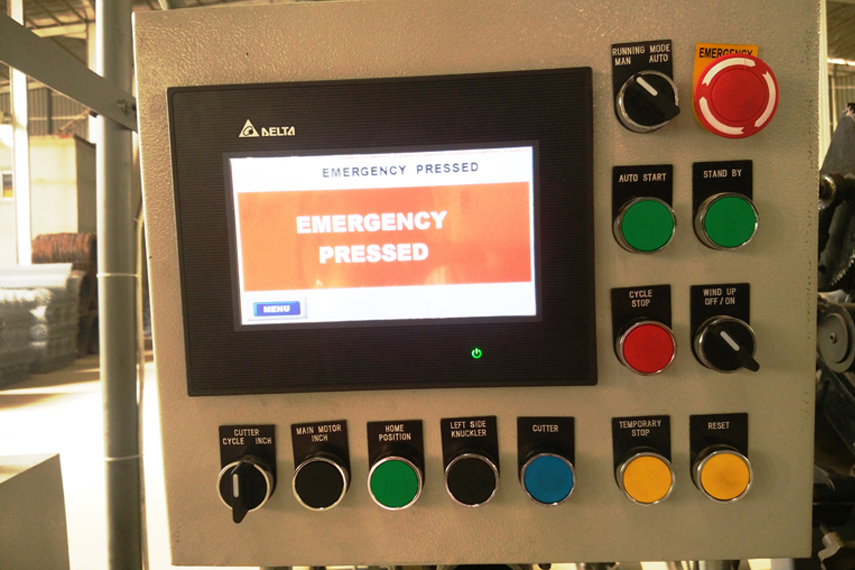

- All Machine Alarm and fault will display on HMI – Touch Screen with no breakdown
- Robust design for Continues 24 x7 Hrs. Operation without any breakdown
- We can provide world class updated automation technology as per client demand even you can run machine by your mobile and will see all data and production from remote or office or from home from anywhere can access
- Dual Wire Inputs system – Double wire
- Same Machine can be used for PVC or Galvanized GI Wire
- Fully Automated for Knuckling , Twisting , Roll wrapping operation
- Easy to change mold or die so that can save time of operator
- Energy saving and cost effective as we are using world class motor and electrical equipment’s
- We have designed our machine in such way that one operator can easily operate machine
- Note – The above technical specification may vary as per machine or client demand

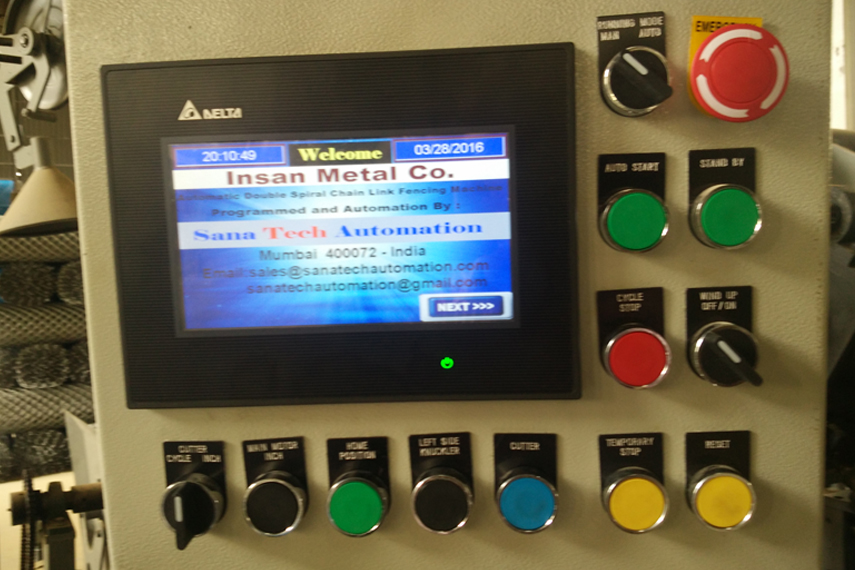

Updated Automation Technology and Electrical Control Panel
